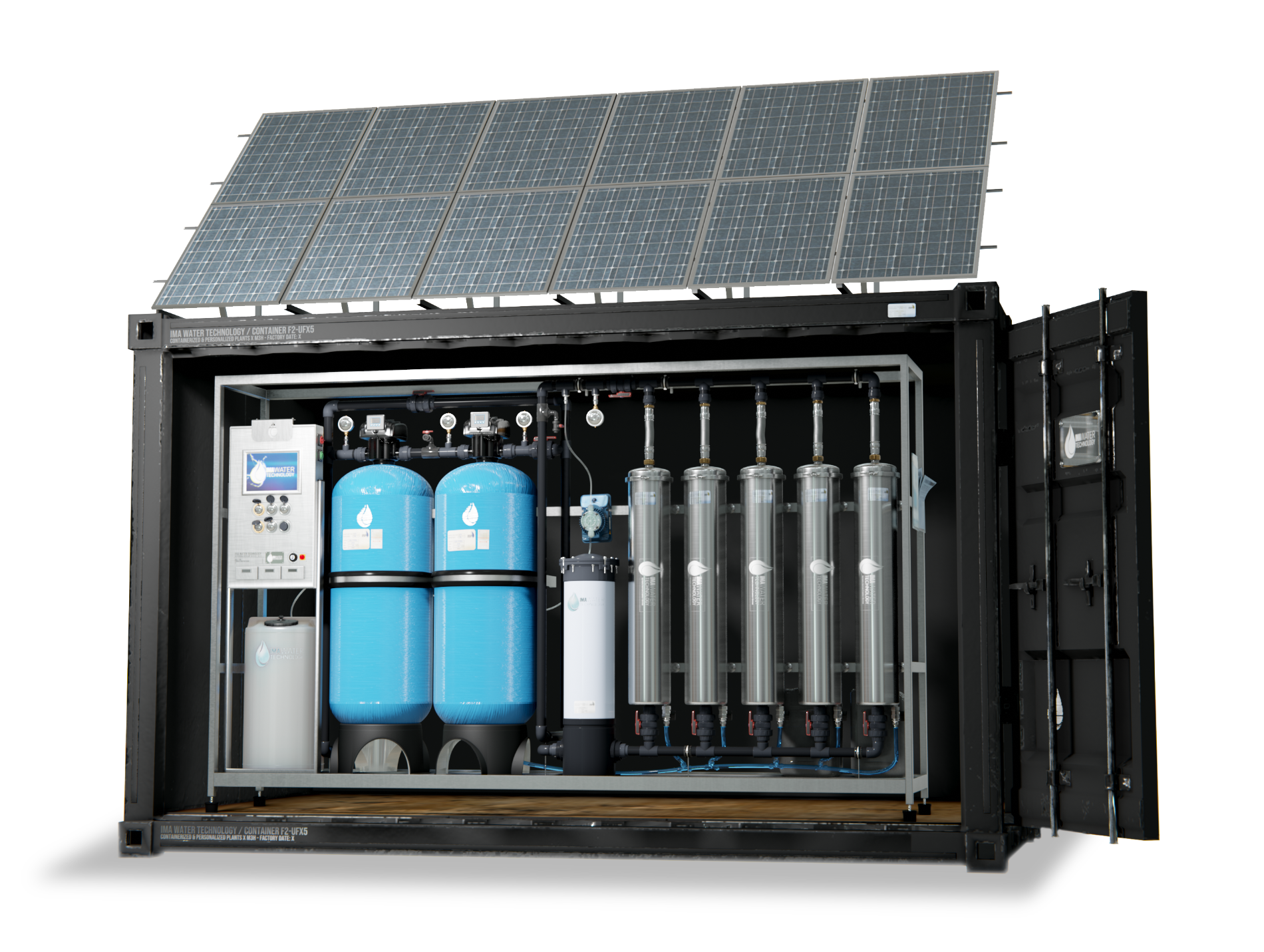

IMEDAGUA solar water purification plants have been designed by our engineers to supply drinking water to small and medium-sized communities all over the world. After several years of research and testing we have achieved a compact solar water purification plant design in a container that can supply up to 1000 m3/day of drinking water.



Applications of solar-powered water purification systems

IMA water's aim with its compact water treatment systems is to bring drinking water to any place on the planet, independent of geographical location or energy supply.

Its field of application covers:

▶ Rural communities that need to be supplied with drinking water from wells and do not have electricity or the network does not work properly.

▶ Population centres that need to be supplied with drinking water with minimum energy consumption.

▶ Projects requiring the installation of a drinking water treatment system with minimum environmental impact.

▶ Installation of water treatment plants for irrigation and agriculture.

Technical data

The equipment and systems integrated in a standard solar water treatment plant are:

▶ Adapted container 20 or 40 ft.

▶ Flow rates of 20-1000 m3/day.

▶ Feed pump for the drinking water treatment system.

▶ Solids collection ring filter.

▶ Multilayer filtration.

▶ Activated carbon filtration.

▶ UV or hypochlorite disinfection system according to demand.

▶ Well water pumping system.

▶ Photovoltaic power supply system.

▶ Hybrid electrical control panel for drinking water treatment plant and photovoltaic system.



For water with some specific dissolved pollutants in any solar plant the following equipment can be included:

▶ Arsenic removal system

▶ Deironing filters

▶ Mercury and lead reduction equipment

▶ Filters to remove heavy metals (chromium, cadmium, copper)

▶ Ammonium removal filters.



Why choose to install an IMA water water treatment plant?

The plants developed by our company have been manufactured after checking all the needs that our field engineers have come across in all our water treatment projects over the years.

All our photovoltaic-powered water treatment plants comply with a strict list of design parameters for all models and sizes.

▶ Compact equipment

▶ Cost-effective

▶ Easily transportable by sea or road

▶ No need for civil works

▶ Equipment manufactured in top quality materials and of European certified origin.

▶ Easy to use and maintain automation

▶ Container prepared with insulating floor and light with all the electrical and hydraulic equipment installed inside.

▶ Industrial equipment that uses safe and reliable water purification technologies without the need for consumables.

▶ Modular design and adaptable to each client and specific case, being able to add systems for the elimination of specific contaminants (arsenic, fluorides, metals, etc.).

▶ Quality equipment of the best European brands.

▶ Turnkey installations.



Types of water that our water treatment plants can treat

All our equipments are prepared for the supply of drinking water of any natural origin.

▶ Water from rivers and rain.

▶ Water from lakes and ponds.

▶ Well water.

▶ Surface water.

▶ Water with specific pollutants such as arsenic, fluorides, heavy metals, iron, manganese, etc. (specific subsystems need to be added).



Services offered by IMA Water

Our company not only manufactures compact water treatment plants, but also offers a complete engineering service for their commissioning.

▶ Design and manufacture of our water treatment plants adapted to the specific conditions and flow rates of the client.

▶ Programming and testing of all the hydraulic and electrical systems in our factory, leaving the water treatment plants ready to operate on site.

▶ Possibility of installation, start-up and training courses on site by our team of engineers. (service not included).

▶ Technical assistance via telematic assistance of the start-up by our technical team.
